Ceramic Pall Ring For CO2 Absorption

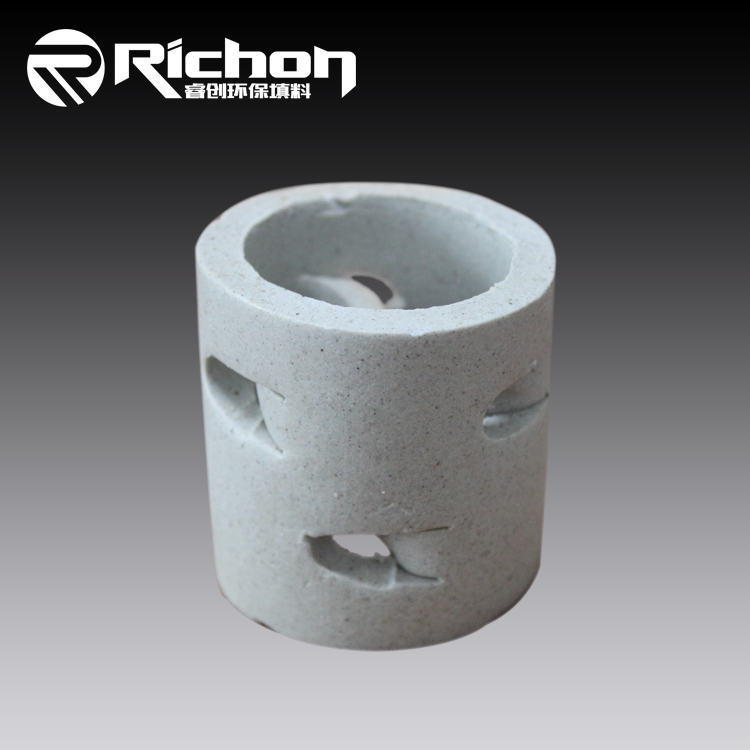

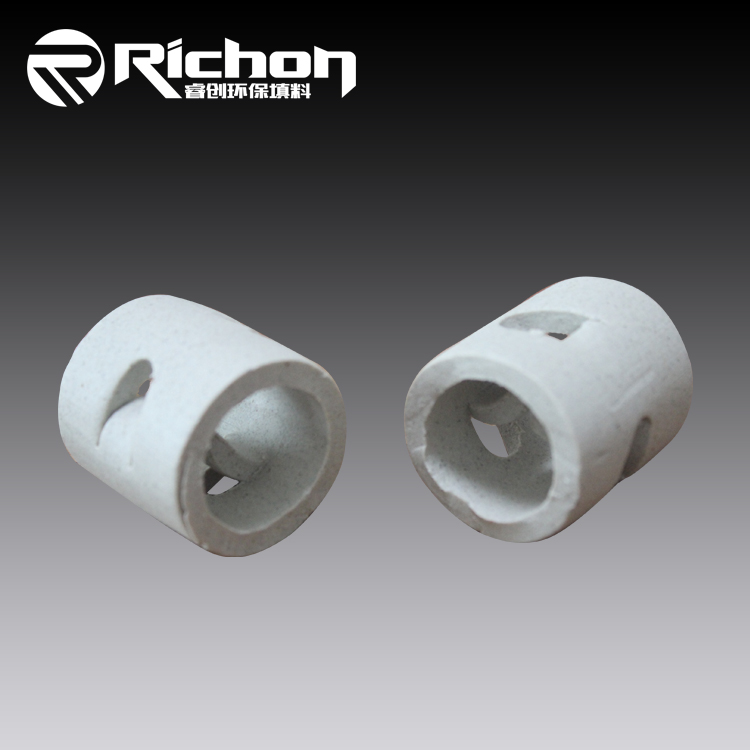

An upgrade to the ceramic Raschig Ring design, Ceramic Pall Ring feature a cylindrical shape with open walls and inward-bent tabs. This design maximizes surface area while minimizing the number of contours, allowing gases and liquid to flow freely while greatly reducing the potential for entrainment.
Ceramic pall ring offer good mechanical strength as well as a nonporous surface. Ceramic is inert and iron-free, as a result, won't rust or react when used with harsh chemicals. |
|
|
Chemicals Composition Physicals properties
| Al2O3 |
17-23% |
|
Item |
Value |
| SiO2 |
>70% |
Water Absorption |
<0.5% |
| Fe2O3 |
<1% |
Apparent porosity |
<1% |
| CaO |
<1.5% |
Specific Gravity |
2.3-2.35 |
| MgO |
<0.5% |
Operation Teperature |
1000°C |
| K2O+Na2O |
<3.5% |
Moh's hardness |
> 7scale |
| Other |
<1% |
Acid resistance |
>99.6% |
Technical Of Date Sheet Of Ceramic Pall Ring
| Size |
Surface Area |
Void Rate |
Packing Number |
Pakcing Density |
Dry packing Factor |
| inch |
mm |
m2/m3 |
% |
piece/m3 |
kg/m3 |
m-1 |
| 1" |
25 |
220 |
73 |
53500 |
700 |
565 |
| 1 1/2" |
38 |
180 |
75 |
15000 |
650 |
356 |
| 2" |
50 |
130 |
78 |
6800 |
600 |
252 |
| 3" |
80 |
110 |
81 |
1950 |
550 |
146 |
Ceramic Pall Ring Features
• 1" Ceramic pall ring, with a 73 percent void fraction and 64 ft2/ft3 surface area
• 1 1/2" Ceramic pall ring, with a 75 pewrcent void fraction and 54.9 ft2/ft3 surface area
• 2" Ceramic pall ring, with a 78 percent void fraction and 39.6 ft2/ft3 surface area
• 3" Ceramic pall ring, with a 81 percent void fraction and 33.5 ft2/ft3 surface area
Ceramic Pall Ring Application
♦ Sulfuric acid and CO2 absorption for the pulp and paper industry
♦ Absorption and stripping in high-pressure absorbers withhigh liquid and gasrates
♦ Drying columns, absorbing columns, cooling towers and scrubbing towers used in chamical processing
