Plastic Random Packing

VSP Ring

From： Pingxiang Richon Environmental Packing Co.,Ltd Date：2019-11-14 20:44:47 Hits：2411 Belong to：Plastic Random Packing

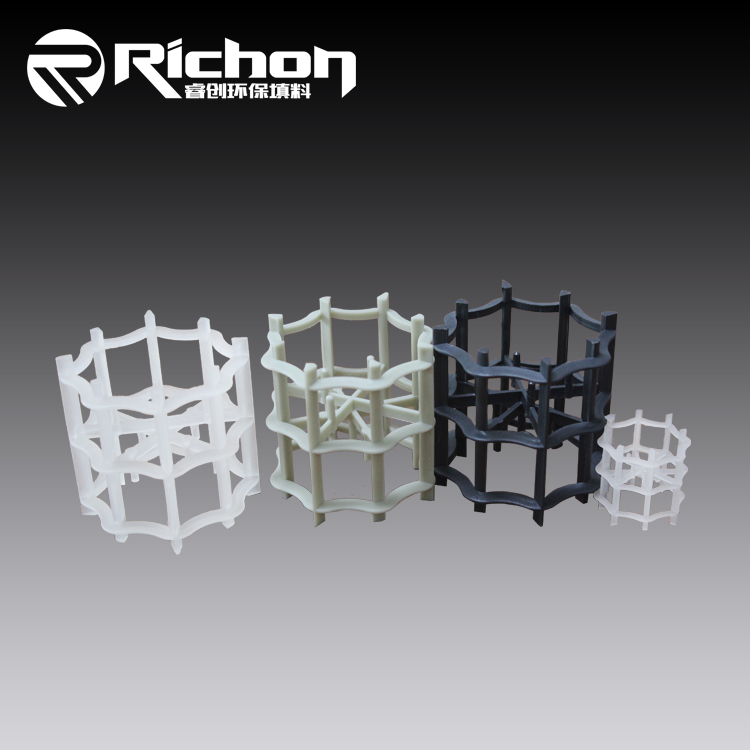

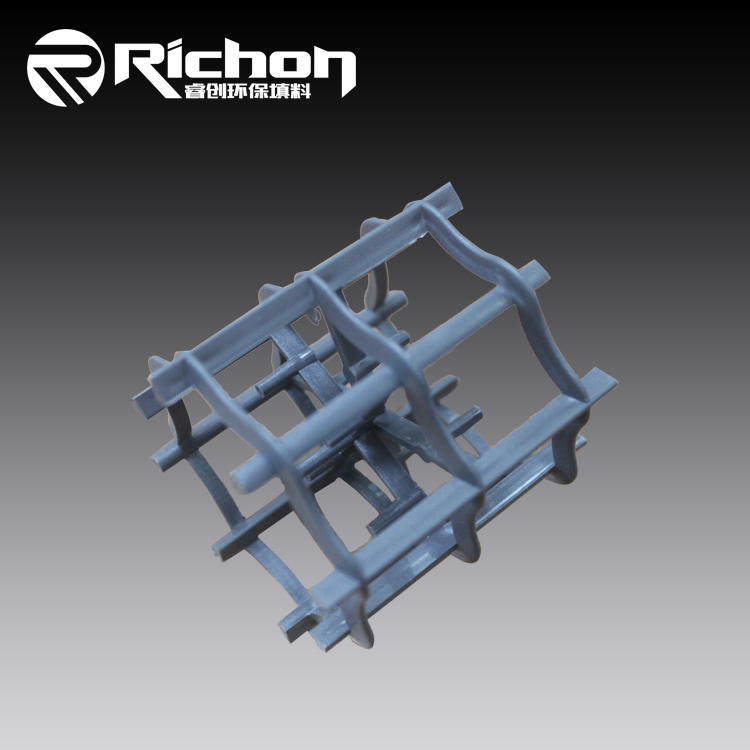

Plastic VSP Ring Inner Arc Packing

VSP Ring also Named Mella Ring，Inner Arc packing, it means very special packing in foreign country means very excellent packing. Its structure is very similar with Nor-pak. External Rid &protruding Drip fins' cross will promote gas & liquid evenly distribution and large size pore's structure will avoid of Tower Packing's internal plugging.
Various segmental arcs are near to the ring and it make the surface of ring continuous. Compared with the pall ring, its flux can be improved 15%-30%, and pressure drop reduced 20%-30%. Therefore, it is a ideal replacement of gas & liquid scrubbing.

The Technical Parameter Of Plastic VSP Ring

Size		Surface Area	Void Volumn	Packing Nmuber	Packing Density
inch	mm	m2/m3	%	pieces/m3	kg/m3
1"	25	185	93	45000	49
2"	50	121	95	5500	46
3-1/2"	90	40	97	1100	70

Materials: PE (polyethylene), PP (polypropylene), RPP (reinforced polypropylene), PVC (polyvinyl chloride), CPVC (chlorinated polyvinyl chloride) and PVDF (polyvinylidene fluoride).
Package: plastic bags, cartons.

Plastic VSP Ring Characteristics
             ♦ High voidage, large flux
                ♦ Low pressure drop
                ♦ Low Mass-transfer unit height
                ♦ Uniform distribution of gas and liquid
                ♦ Small specific gravity
                ♦ Good anti-impaction capability
                ♦ High mass transfer performance

Plastic VSP Ring Application

» Used in Scrubbing, stripping , biotreatment, distillation services
