Ceramic Random Packing

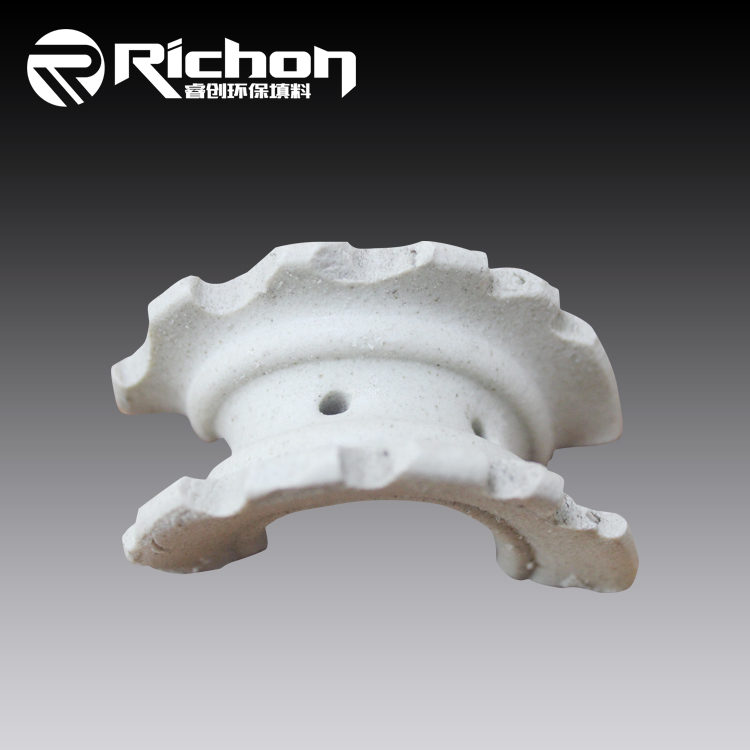

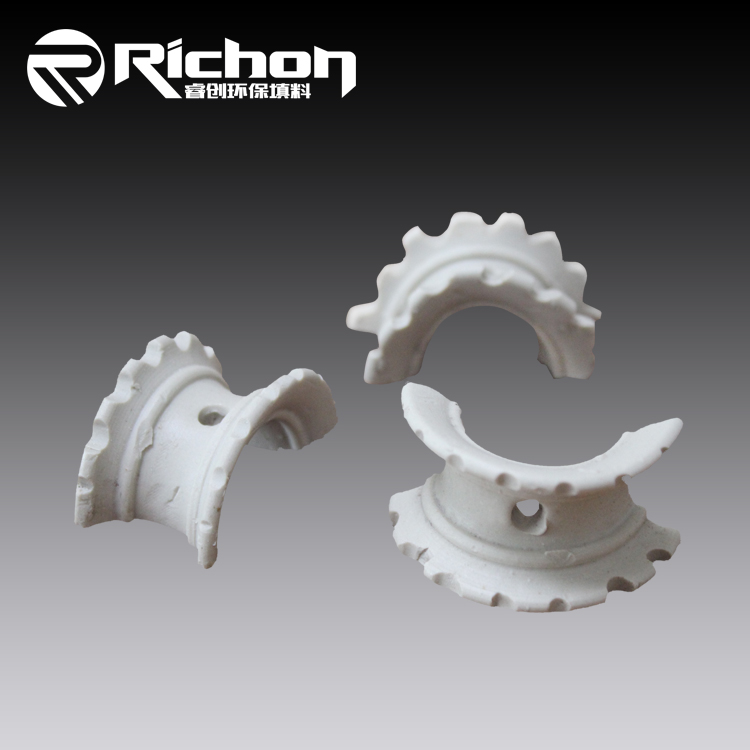

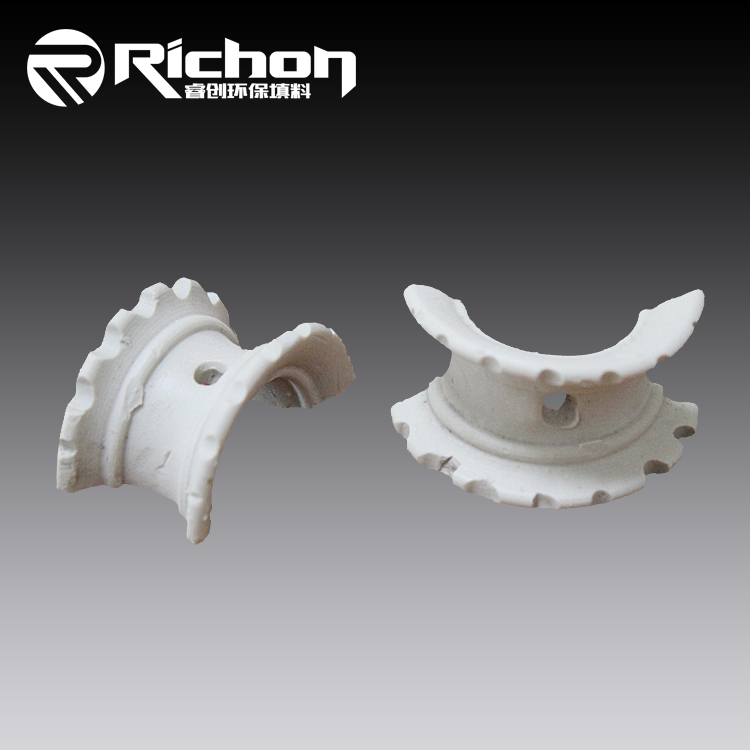

| Ceramic Super Intalox Saddle Ring draw inspiration from the similarly INTALOX ptoduct, but offer a higher surface area for improved mass transfer and other benefits. Our Suer saddles have a curved, half-ring shape with ridged walls on either -similar to a rainbow or saddle. This design prevent packing materials from nesting on top of one another, maintaining superior flow and gas liquid transfer. |
| Al2O3 | 17-23% | Item | Value | |
| SiO2 | >70% | Water Absorption | <0.3% | |
| Fe2O3 | <1% | Apparent porosity | <1% | |
| CaO | <1.5% | Specific Gravity | 2.3-2.35 | |
| MgO | <0.5% | Operation Teperature | 1000°C | |
| K2O+Na2O | <3.5% | Moh's hardness | > 7scale | |
| Other | <1% | Acid resistance | >99.6% |
| Size | Surface Area | Void Rate | Packing Number | Pakcing Density | Dry packing Factor | |
| inch | mm | m2/m3 | % | piece/m3 | kg/m3 | m-1 |
| 1" | 25 | 220 | 86 | 53000 | 650 | 434 |
| 1 1/2" | 38 | 180 | 84 | 16000 | 600 | 252 |
| 2" | 50 | 130 | 84 | 7300 | 580 | 213 |
| 3" | 7 | 110 | 72 | 1800 | 550 | 180 |
