Ceramic Random Packing

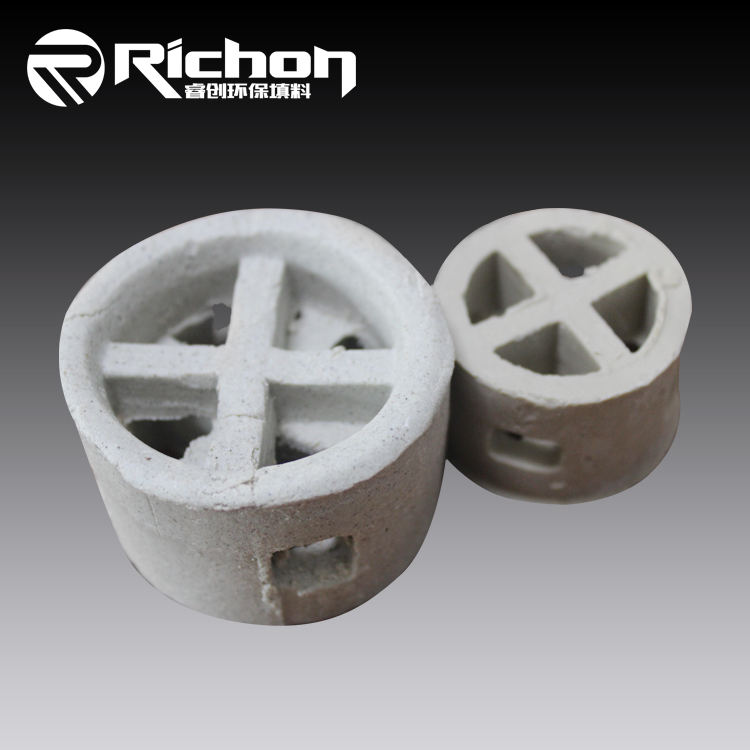

| Ceramic Cascade Mini Ring lowers cylinder height and thins thickness and adds flanging on the side ends. The flanging design increases mechanical strength of cascade mini ring. It also increase the directional possibility because it breaks the symmetry of packing structure. Besides, the contacting between random packing is transferred from line contacting to point contacting. In this way, it can increase the void between random packing particle and reduces the pressure drop. Besides, it can increase the mass transfer efficiency than ceramic pall ring |
| Al2O3 | 17-23% | Item | Value | |
| SiO2 | >70% | Water Absorption | <0.5% | |
| Fe2O3 | <1% | Apparent porosity | <1% | |
| CaO | <1.5% | Specific Gravity | 2.3-2.35 | |
| MgO | <0.5% | Operation Teperature | 1000°C | |
| K2O+Na2O | <3.5% | Moh's hardness | > 7scale | |
| Other | <1% | Acid resistance | >99.6% |
| Size | Surface Area | Void Rate | Packing Number | Pakcing Density | Dry packing Factor | |
| inch | mm | m2/m3 | % | piece/m3 | kg/m3 | m-1 |
| 1" | 25*15*3 | 210 | 73 | 72000 | 650 | 540 |
| 1 1/2" | 38*2384 | 153 | 74 | 21600 | 630 | 378 |
| 2" | 50*30*5 | 102 | 76 | 9100 | 580 | 232 |
| 3" | 76*4689 | 75 | 78 | 2500 | 530 | 158 |
