Metal Random Packing

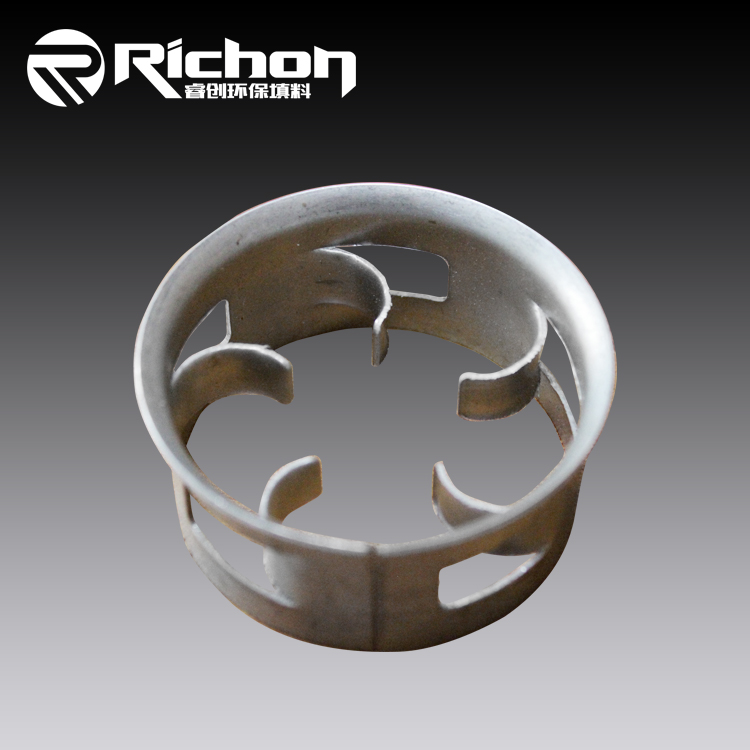

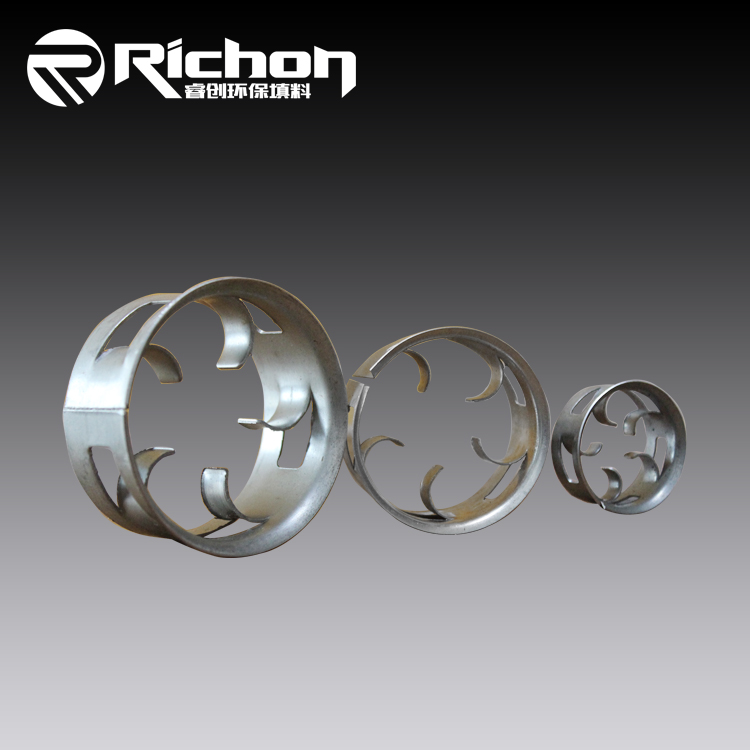

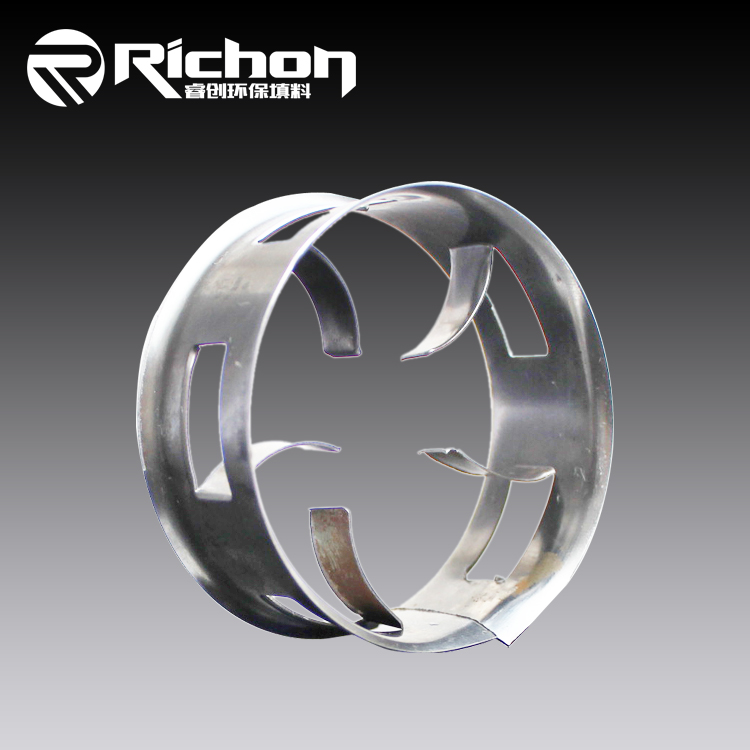

| Metal cascade mini ring is also called metal cascade ring, metal cascade mini ring packing. It is a new type random packing. Metal cascade mini ring has rectangular openings, curved blade, conical edge and reduced height. Its structural design effectively increases the gas-liquid contact point and improves the gas-liquid distribution in the packed bed. The design greatly promotes the renewal of liquid membrane's surface and strengthens cascade ring's mass transfer performance. This kind random packing has higher mass transfer efficiency and better separation effect than the metal intalox saddle and metal raschig ring. Metal cascade ring has many advantages, such as high capacity, good fouling resistance and low pressure drop. It performs well in handling the materials which are easy to decompose, aggregate or carbonize. Metal cascade mini ring packing is widely used as tower packing in carbon dioxide degassing tower, ozone contact reaction tower, mist purification tower and synthesis reaction column. |
-1.jpg)
| Size | Surface Area | Void Rate | Packing Number | Dry Packing Factor |
| mm | m2/m3 | % | piece/m3 | m-1 |
| 25 | 220 | 96.5 | 97160 | 273.54 |
| 38 | 154.3 | 95.9 | 31800 | 185.8 |
| 50 | 109.2 | 96.1 | 12300 | 127.4 |
| 76 | 73.5 | 97.6 | 3540 | 81 |
