Metal Random Packing

Intalox Saddle Ring

From： Pingxiang Richon Environmental Packing Co.,Ltd Date：2019-11-14 21:07:13 Hits：6524 Belong to：Metal Random Packing

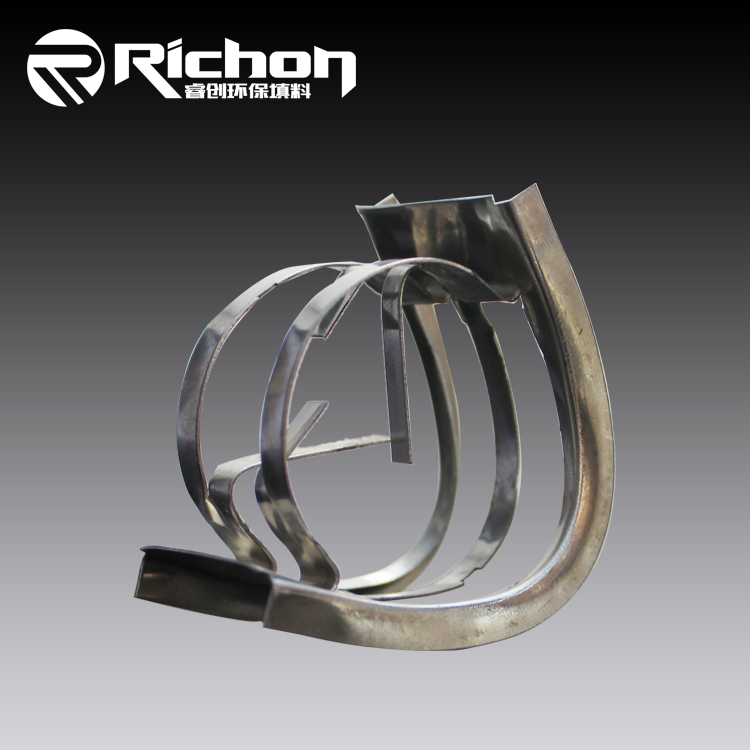

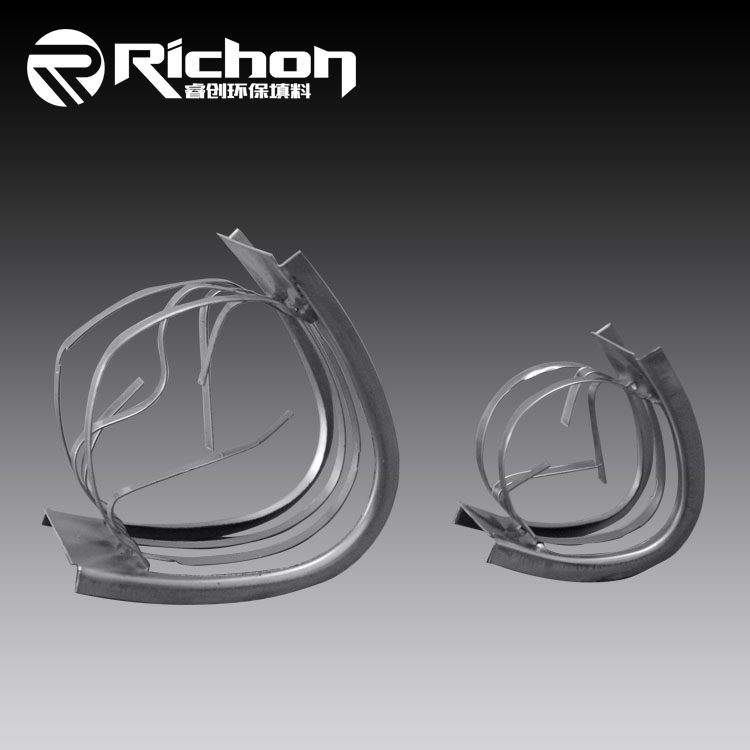

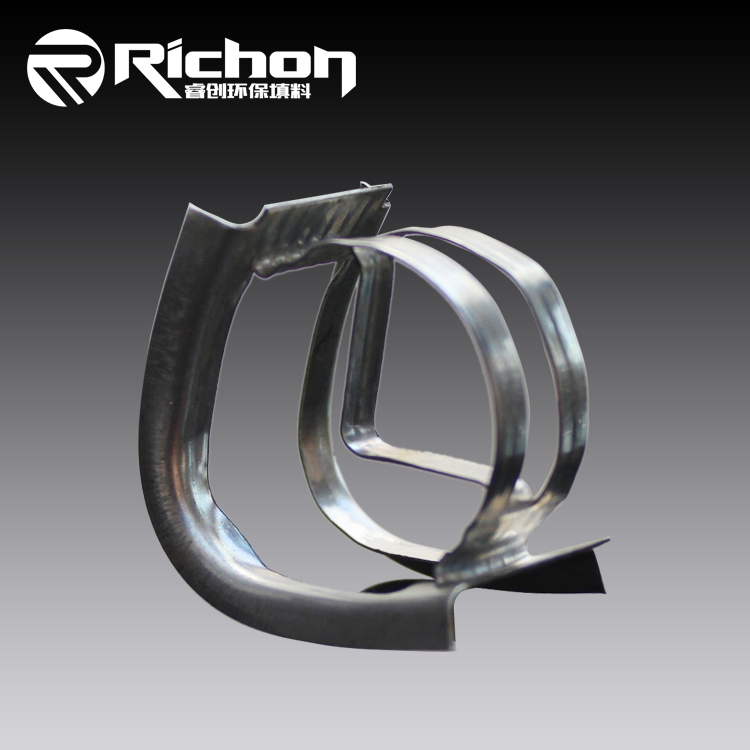

Metal Intalox Saddle Ring For Packed Tower

Metal Intalox Saddles belong to the second generation of Tower packings. also called metal intalox saddle ring, metal intalox saddle packing, IMTP. It is an efficient intalox saddle, which combines the advantages of annulus and saddle.

Metal Saddles Rings are heavily used in distillation towers: from deep vacuum towers, where low pressure drop is crucial, to high-pressure towers, where capacity easily surpasses that of conventional trays. The low aspect characteristic of Metal saddles promotes a better or “less random” fill of the packed bed. It settles in a manner that orients more of the flat surfaces parallel to vapor and liquid traffic than perpendicular to flow. This orientation increases capacity while still maintaining effective surface area for vapor/liquid contact.

Many absorption and stripping towers, especially those aiming for high capacity or close approach to equilibrium, rely on Metal Saddle packing. The low pressure drop, high specific heat-transfer coefficient, as well as the fouling resistance of Metal Saddle packing contributes to its success in heat transfer towers, such as olefin plant quench columns.
Metal Saddels are available in a wide range of materials like steel, stainless steel, Aluminun and special alloys like Monel 400 and Inconel.

The Technical Parameter Of Metal Saddle Ring

Size (mm)	Bulk Density 304 (kg/m³)	Bulk Number (n/m³)	Surface Area (m²/m³)	Voidage	Dry Packing Factor (m^-1)
16.5 × 10.6 × 0.25	223	324110	275	97.2%	300.2
16.5 × 10.6 × 0.3	263	324110	275	96.7%	304.9
25.9 × 12.6 × 0.25	163	127180	415	94.8%	489.2
25.9 × 12.6 × 0.3	192	127180	344	95.5%	393.2
25.9 × 12.6 × 0.4	266	127180	199	96.6%	221.0
35.4 × 18.8 × 0.25	124	51180	151	98.4%	158.3
35.4 × 18.8 × 0.3	146	51180	151	98.1%	159.7
35.4 × 18.8 × 0.4	203	51180	151	97.4%	163.2
48.5 × 28.6 × 0.3	95	15550	97	98.8%	101.0
48.5 × 28.6 × 0.4	132	15550	97	98.3%	102.5
48.5 × 28.6 × 0.5	169	15550	97	97.9%	103.9
67 × 37 × 0.4	113	9000	84	98.6%	87.3
67 × 37 × 0.5	145	9000	84	98.2%	88.4
76.5 × 42.5 × 0.4	83	4690	61	99.0%	62.9
76.5 × 42.5 × 0.4	106	4690	61	98.7%	63.5

• Material: Include carbon steel, stainless steel, inconel, brass, copper and nickel alloys
• Package: Woven bag, bulk bag, pallet, carton box, wooden box

Metal Intalox Saddles Feature
• Lower pressure drop: Metal saddle packing provides lower pressure drops, which in turn reduces foaming and energy consumption
• High efficiency: By providing higher efficiency over a wide flow range, metal saddle rings delivery enhanced performance that permits smaller column diameters for designing new systems.
• Better mechanical strength: A variety of material options lets you configure your purchase for optimal strength-to-weight ratio-select products are suitable for use in packed beds up to 50 feet deep.
• Minimal drag and hold-up: Random geometries and improved surface area promote improved interfacial gas-liquid contact with minimal hold-up

Metal Intalox Saddles Application
» Sour water stripping
» Acid gas removal
» Atmospheric and high-pressure distillation
» Methane and ethane removal
» A Versatile Packing Used in Distillation, Absorption etc
» Used in Both Deep Vacuum and High Pressure Towers
