Plastic Random Packing

Pall Ring

From： Pingxiang Richon Environmental Packing Co.,Ltd Date：2019-11-14 21:02:34 Hits：20736 Belong to：Plastic Random Packing

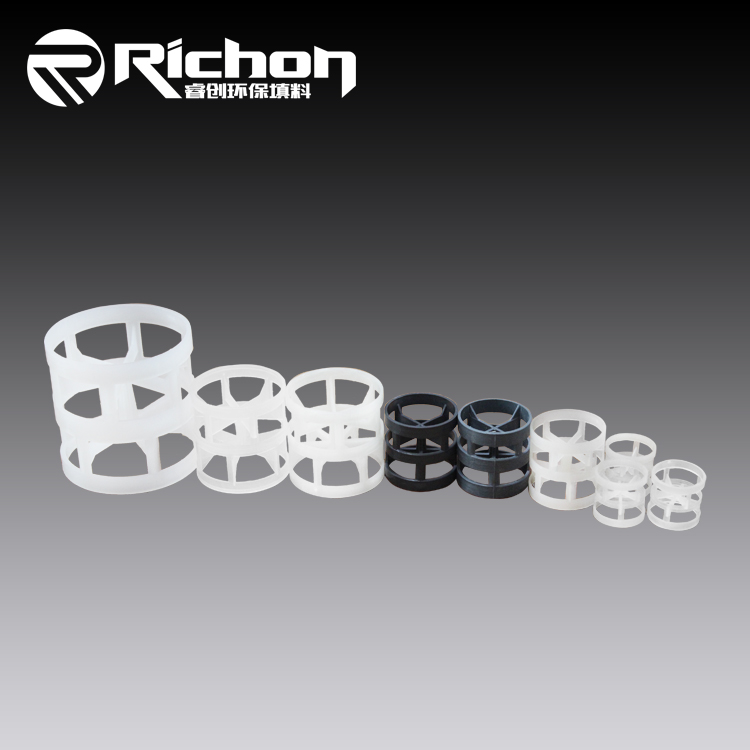

Plastic Pall Ring Random Packing

Plastic Pall Rings are traditional ring type random packing with global installed base and well documented performance history.
An advance on the Raschig Ring, the Pall Ring has similar cylindrical dimensions but has two rows of punched out holes, with fingers or webs turned into the centre of the cylinder, which significantly increases the performance of the packing, in terms of throughput, efficiency and pressure drop.
High resistance to plugging, nesting, and fouling, easily soaked, pall ring ensure a better distribution of liquid or gas along with a good mass transfer efficiency. So pall ring is widely used in gas and liquid transfers field, like chlor-alkali industry, gas industry and chemical industry.
It is offered in a variety of plastics such as PVDF, Polypropylene, HDPE, PVC, CPVC, and Glass Filled Polypropylene. Commonly available in natural color, also accept color customized.

The Technical Parameter of Plastic Pall Ring

Size		Surface Area	Void Rate	Packing Number	Packing Density	Dry Packing Factor
inch	mm	m2/m3	%	piece/m3	kg/m3	m-1
5/8"	16	188	91	170000	85	275
1"	25	175	90	53500	69	239
1-1/2"	38	115	89	15800	69	220
2"	50	93	90	6500	52	127
3"	76	73.2	92	1927	48	94
4"	100	52.8	94	1000	48	82

Material: PE (polyethylene), PP (polypropylene), RPP (reinforced polypropylene), PVC (polyvinyl chloride), CPVC (chlorinated polyvinyl chloride) and PVDF (polyvinylidene fluoride).
Lifespan: more than 3 years.
Package: plastic bags, cartons.

Plastic Pall Ring Characteristics

♦Capacity versus Pressure Drop:
          • Most suited in low pressure drop, high capacity applications;
           • A range of sizes allows the tower to operate at an optimum efficiency and throughput;
           • High degree of randomness;
           • Consistent ratio of free and blocked passages, independent of orientation;
           • Large surface area : volume ratio augments the rate of liquid film surface renewal to improve mass transfer.
♦Hold-up and Two-phase Contact:
          • Promotes highly efficient two-phase contact and distribution;
           • A relatively high liquid hold-up promotes high absorption efficiencies, especially in cases where the reaction rates are slow;
           • Uninterrupted and consistent passages for gas and liquid flow.
♦Versatility:
          • Open, cross-linked design provides a highly efficient used of the ring’s surface area;
           • Robust to variations in liquid and vapour distribution.
♦Mechanical Strength:
          •Its internal cross-structure of diametrical spars make it mechanically robust and suitable for use in deep packed bed.

Plastic Pall Ring Applications:

» Applied in various mass transfer towers for stripping, scrubbing and absorption.
» Used in the industries of chemical, gas, petroleum, chlor-alkali and environmental protection.
» Used in carbon dioxide degassing towers, ozone exposure reaction towers, vacuum distillation towers and other reaction towers.
