Plastic Random Packing

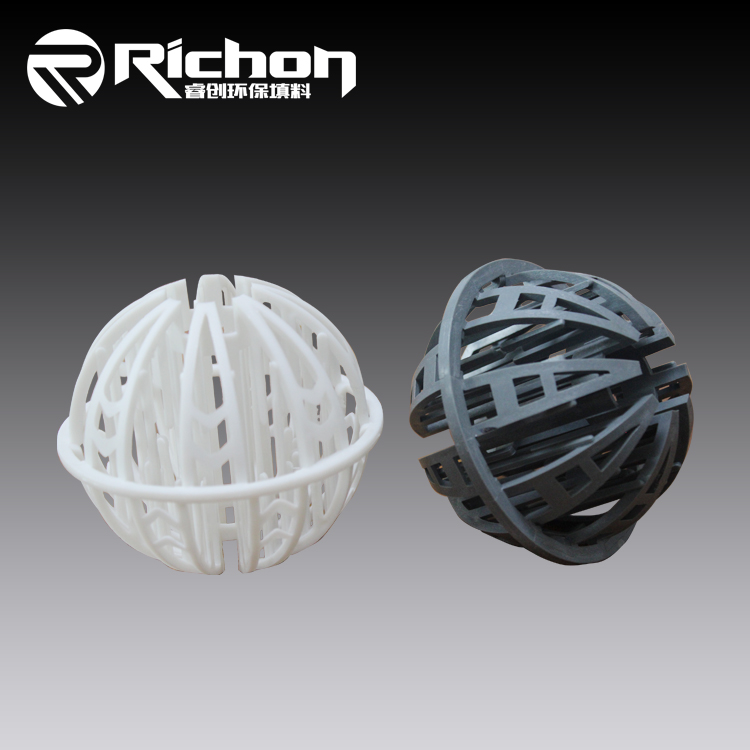

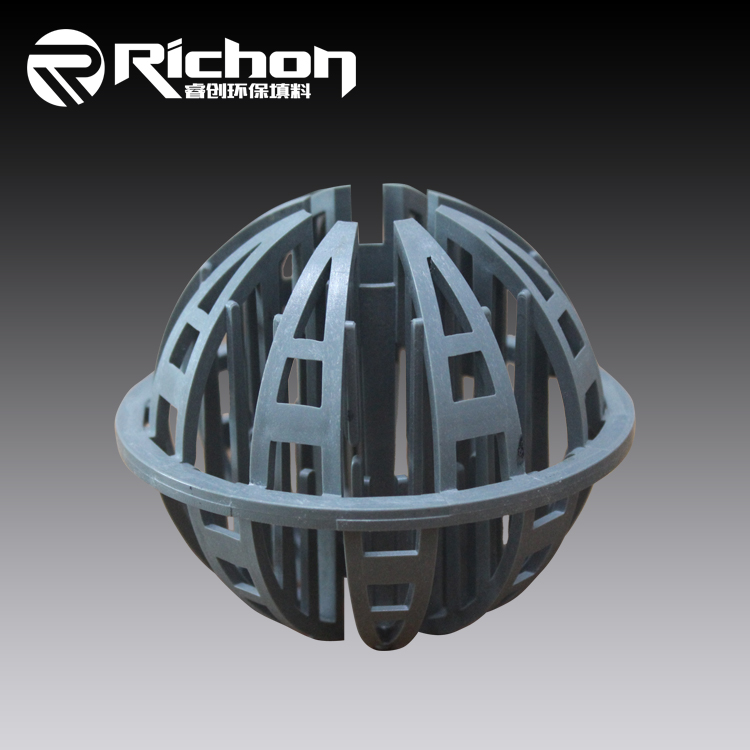

| Tri-Pack is a hollow spherical column packing constructed of a unique network of ribs, struts and drop rods. Its superior geometric shape gives it an advantage over other products on the market. Their spherical shape allows each element to roll into the packed position without forming void areas common to irregular shaped packing. With Tri-Packs there is no need for allowances for settling and nesting is virtually impossible. The round Tri-Pack offers reliable and predictable loading of your tower which means more reliable and predictable performance of your system. In addition to the superior geometric shape, an active surface area is very important to mass transfer. The unique network of ribs, struts and drip rods have proven to give Tri-Packs a distinct advantage in providing excellent wetting qualities and maintaining liquid distribution through the packed bed. Excessive surface area can impede proper gas and liquid contact and always results in higher pressure. The Tri-Pack offers an optimum surface area to open area ratio which yields excellent mass transfer efficiency and reduced operating cost. |
| Size | Surface Area | Void Rate | Packing Number | Packing Density | Dry Packing Factor | |
| inch | mm | m2/m3 | % | piece/m3 | lb/ft3 | m-1 |
| 1" | 25 | 85 | 90 | 81200 | 81 | 28 |
| 1-1/4" | 32 | 75 | 92 | 25000 | 70 | 25 |
| 2" | 50 | 48 | 93 | 11500 | 62 | 16 |
| 3.5" | 95 | 38 | 95 | 1800 | 45 | 12 |
