Plastic Random Packing

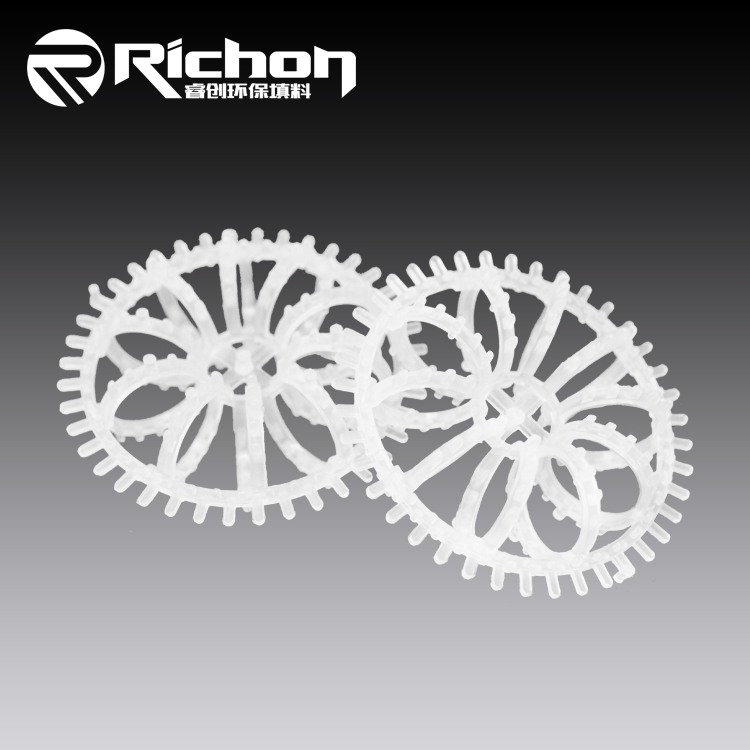

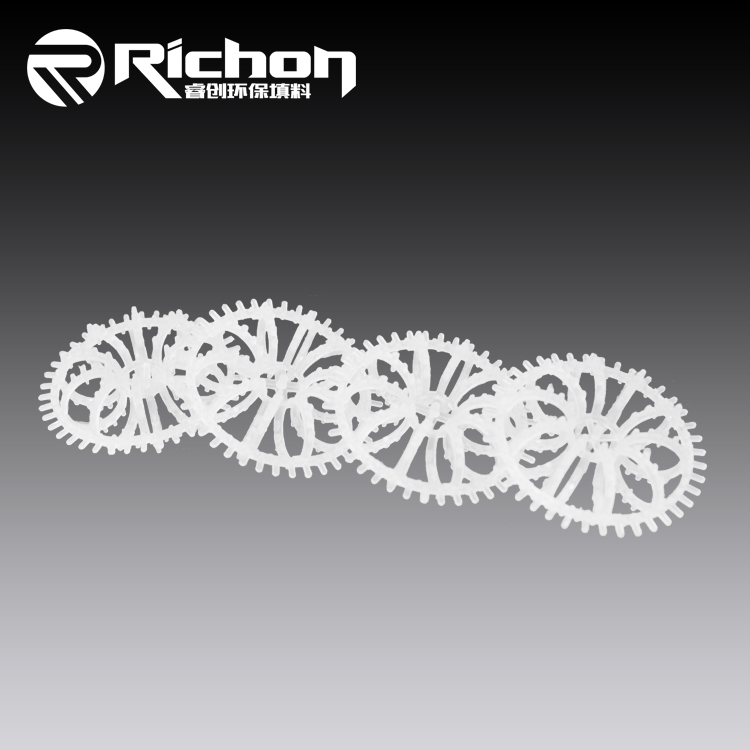

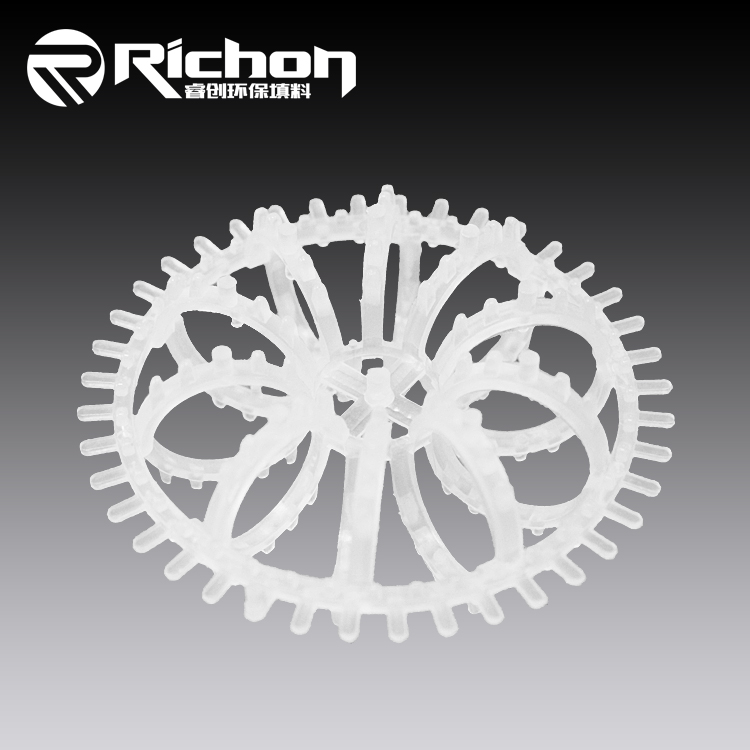

| Plastic Teller Rosette Ring were first developed by A.J. Teller in the United States in 1954, and therefore also often referred to as Teller Rosettes, many customer call it as 2K. The main rib of outer ring has a plurality of convex distribution points, and at the same time, there are many curved branches and joints, when the solution and the contaminated air are oppositely impacted, the droplets form a misty water droplet surrounding the entire filler, and the effect is not only adsorped by surface, but also by the convex distribution points and curved brances. Compared to the pall ring and saddle ring, it can be at a higher liquid holdup because of numerous gaps, and the tower can remain liquid longer, thus increasing the gas-liquid contact time, improve the mass transfer efficiency, and there is no any dead angle for the flowing liquid, the effective area of the filler is larger than normal packing. |
| Size | Surface Area | Void Rate | F Factor | Packing Number | Packing Density | |
| mm | ft2/ft3 | % | m-1 | piece/m3 | kg/m3 | |
| 2K | 73 | 28 | 95 | 11 | 6600 | 56 |
