Plastic Random Packing

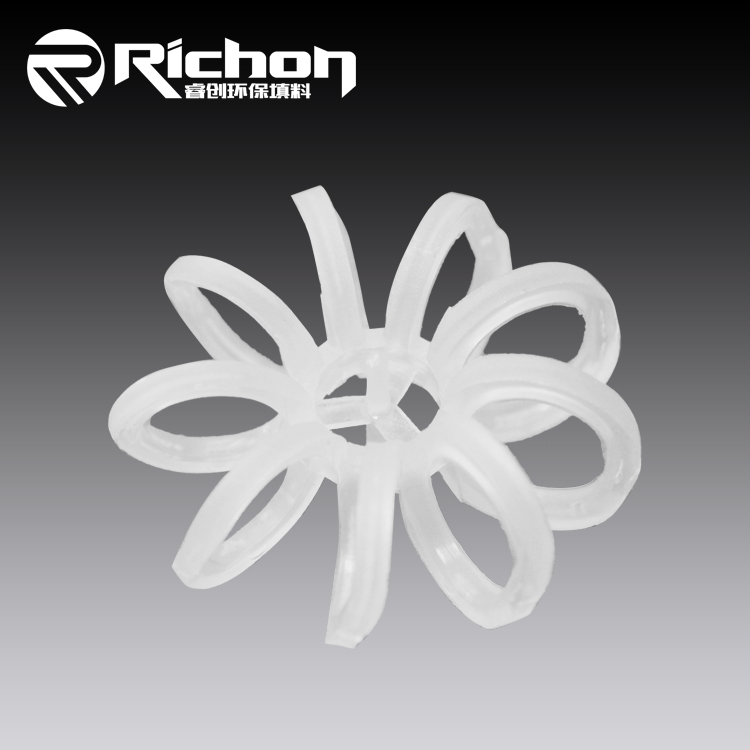

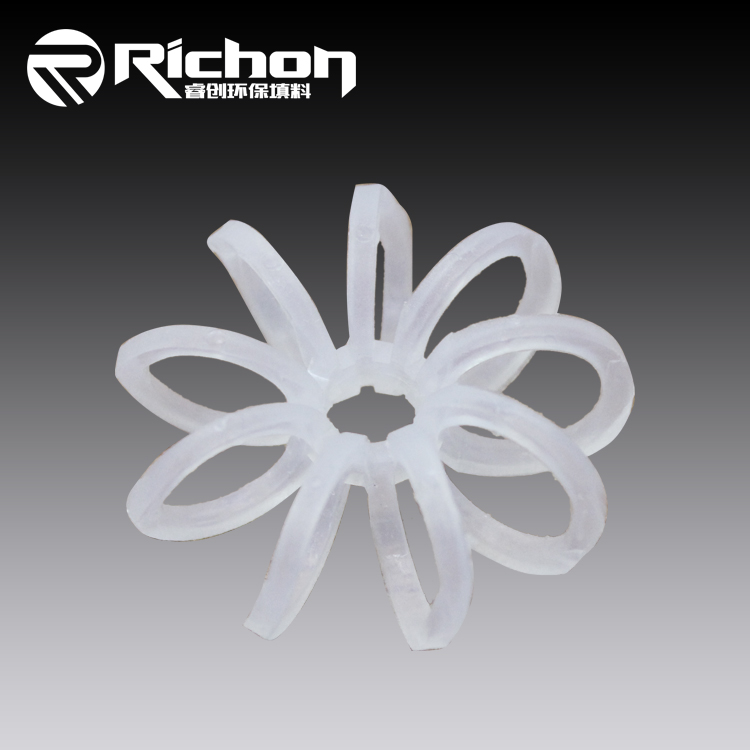

| Plastic Teller Rosette Ring were first developed by A.J. Teller in the United States in 1954, and therefore also often referred to as Teller Rosettes, One type teller ring is 1R, widely used in washing tower. 1R' shape is like the ellipse which is consisted of many enlaced cirques, due to the structure of polycyclic enabling, it will enlarge gas & liquid contacting area and prolong liquid retention time. Therefore, it was recognized a ideal packing in gas washing, purification tower. |
The Technical Parameter Of Teller Rosettes Ring 1R
| Size | Height | Surface Area | Void Rate | Packing Number | Packing Density | |
| type | mm | mm | m2/m3 | % | piece/m3 | kg/m3 |
| S-O / 1R | 47 | 19 | 185 | 88 | 32500 | 81 |
| S | 51 | 19 | 180 | 89 | 25000 | |
Materials: PE (polyethylene), PP (polypropylene), RPP (reinforced polypropylene), PVC (polyvinyl chloride), CPVC (chlorinated polyvinyl chloride) and PVDF (polyvinylidene fluoride).
Package: Plastic bags, cartons.
Teller Ring 1R Characteristics
♦ Great gas flow capacity
♦ High open area design for minimal fouling
♦ High column stability-no classic flooding
♦ Effective impingement of both liquid droplets and solid particulate
♦ No Channeling with proper liquid distribution
Teller Ring 1R Applications
» Used in water treatment process.
» Used in absorption, extraction, scrubbing, stripping and heat transfer.
» Applied in purification towers, cooling towers, washing towers and rectifying columns.
» Applied in the packed towers of petroleum industries, chemistry industries, coal gas industries and environmental protection industries.
