Plastic Random Packing

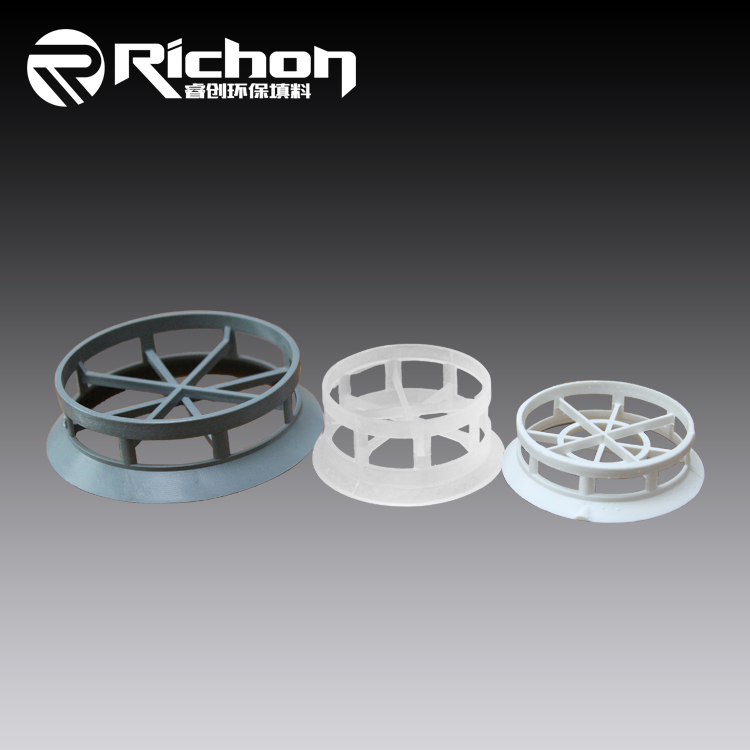

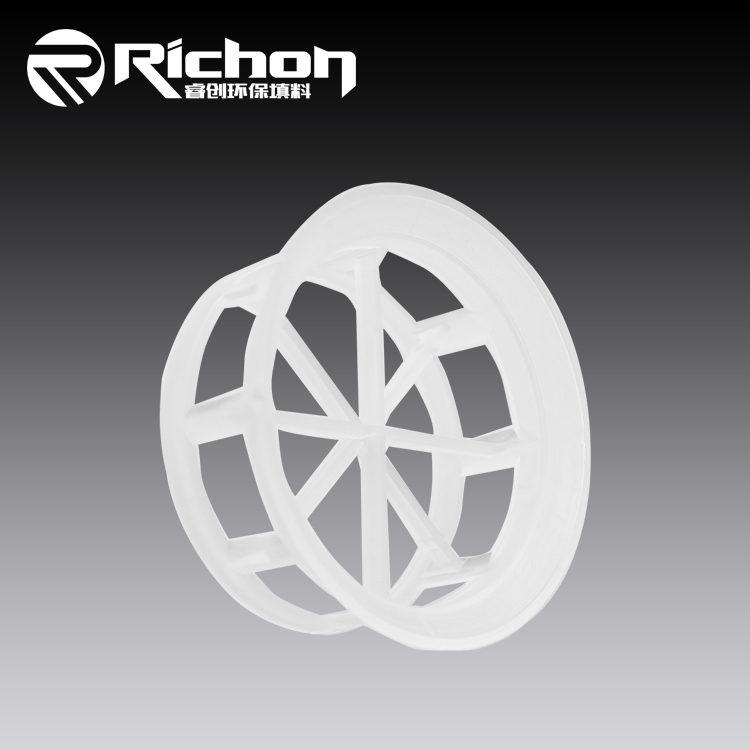

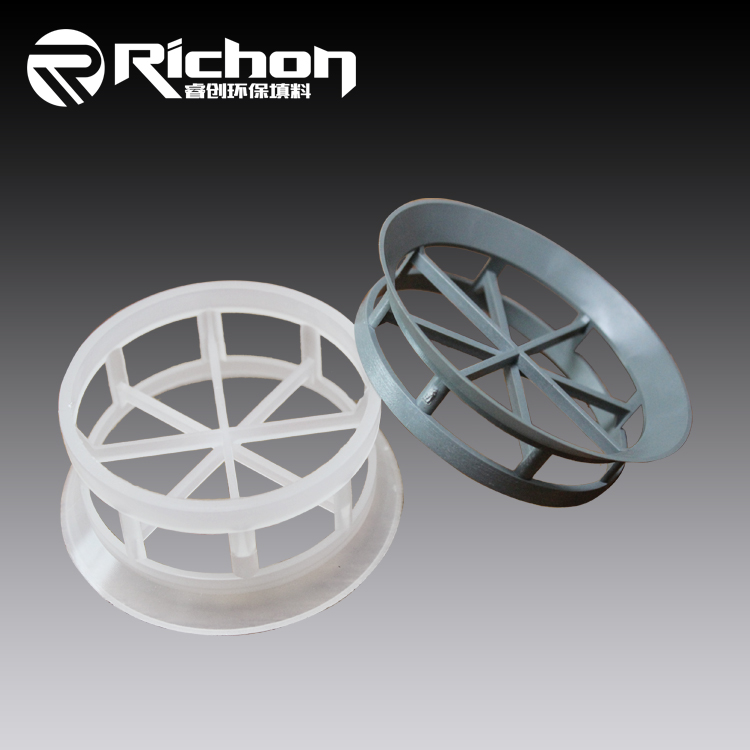

| Plastic Cascade Mini Ring is a type of random tower packing suitable for use in absorption, stripping and environmental applications. We base our design on the Koch-Glitsch Cascade Mini Ring (CMR) — a versatile product first introduced in 1971 and still commonly used today. Multiple sizes and material options expand the potential applications, making them suitable for use in high-temperature or high-capacity environments. Mini Rings are small cylinders with a series of internal braces. it features a low aspect ratio, where the cylinder’s diameter is approximately three times the height. This low profile ensures a more even flow and better gas and liquid contact. Also, the smaller design offers excellent structural integrity, reducing the risk of deformation in high-capacity towers. When installed in a tower, the Mini Rings naturally orient themselves evenly, maximizing contact between the rings’ inner and outer surfaces and improving overall packing efficiency. |
-1.jpg)
| Size | Surface Area | Void Rate | Packing Number | Packing Density | Dry Packing Factor |
| mm | m2/m3 | % | piece/m3 | m/m3 | m-1 |
| 16*8.9*1 | 370 | 85 | 299136 | 135.6 | 602.6 |
| 25*12.5*1.2 | 228 | 90 | 81500 | 65 | 312.8 |
| 38*1981.2 | 132.5 | 91 | 27200 | 54 | 175.8 |
| 50*25*1.5 | 114.2 | 92.7 | 10740 | 43 | 143.1 |
| 76*37*2.6 | 90 | 92.9 | 3420 | 44 | 112.3 |
