Plastic Random Packing

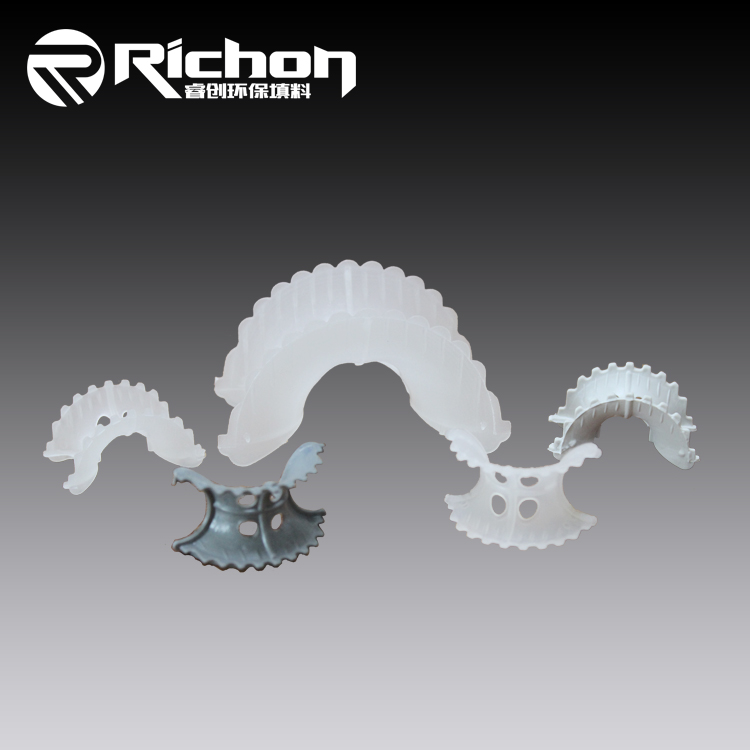

| Plastic super saddle ring is also called super saddle ring, plastic super intalox saddle, its shape is similar to the saddle, also named Berl Ring. In our actual application, when gas flows upward, liquid will flow downward along with arc channel.This Movement way will directly reduce wall flow's happening. However, Arched external frame also cause overlapping & bridging . Therefore, scientists changed the intalox saddle’s arc adge into wavy or jagged profile, meanwhile, increased some pores in the arc liquid channel’s middle position, it not only can reduce bridging' happen, increase the packing contacting gap, but also increase the free passages of the fluid and improve gas & liquid movement and distribution in packed layer. |
| Size | Surface Area | Void Rate | Packing Number | Packing Density | Dry Packing Factor |
| mm | m2/m3 | % | piece/m3 | kg/m3 | m-1 |
| 25*12.5*1.2 | 260 | 90 | 51200 | 92 | 390 |
| 38*19*1.2 | 178 | 96 | 25200 | 75 | 201 |
| 50*25*1.5 | 168 | 97 | 6300 | 76 | 184 |
| 76*38*2.6 | 130 | 98 | 3700 | 64 | 138 |
